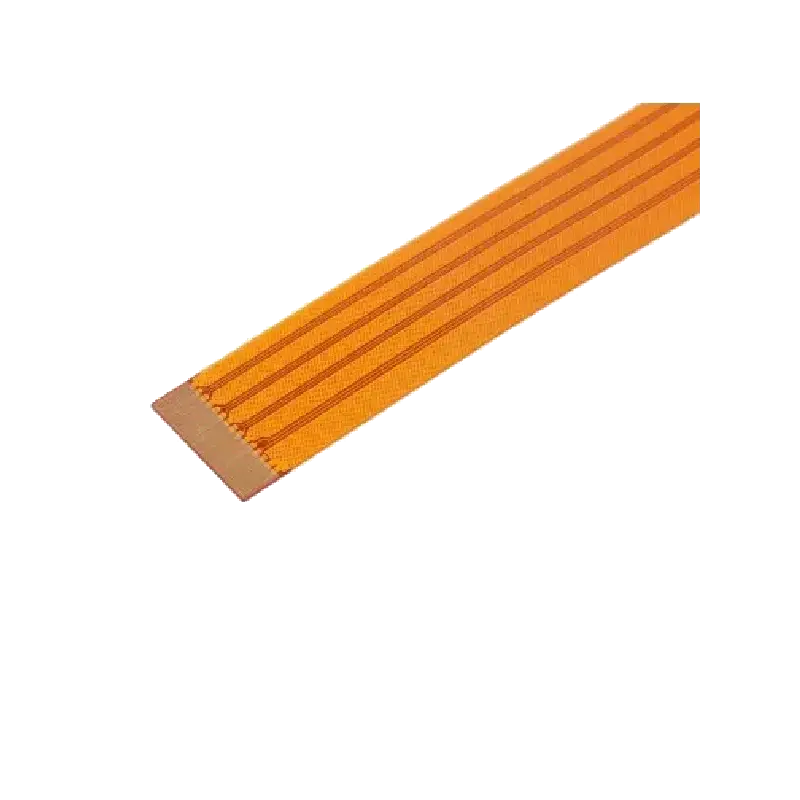

Nappe écran DSI (MIPI) pour Raspberry Pi 5
Plage de prix : 1,80 € à 4,80 € INCL. VAT
- 22-to-15-pin MIPI DSI display ribbon cable for Raspberry Pi 5
- Connects 15-pin DSI displays to the mini connector of the Pi 5 or CM
- Three lengths to choose from: 200, 300 or 500 mm
Entreprise, école ou collectivité ? business account Offres éducation
- Description
- Additional information
Description
Raspberry Pi 5 MIPI DSI cable: the 22-to-15-pin display ribbon cable
This DSI ribbon cable connects a display fitted with the standard 15-pin DSI connector to the 22-pin mini connector of the Raspberry Pi 5 or a Compute Module IO board. Available in 200, 300 and 500 mm, it lets you move the board further from the display or replace a damaged ribbon cable.
Highlights
- Standard to Mini : 15 pins at 1 mm pitch on the display side, 22 pins at 0.5 mm pitch on the board side.
- Three lengths : 200, 300 or 500 mm.
- Image and touch on the same ribbon cable for the official touch displays.
Technical specifications
| Features | Value |
|---|---|
| Type | MIPI DSI flexible flat cable (FFC) |
| Board side | 22 pins, 0.5 mm pitch (mini) |
| Display side | 15 pins, 1 mm pitch (standard) |
| Lengths | 200, 300 or 500 mm |
Which one should you choose?
| Screen | Ribbon cable required with a Raspberry Pi 5 |
|---|---|
| Official 7″ touchscreen 800 x 480 | this 22-to-15-pin ribbon cable |
| Touch Display 2 7-inch | 22-to-15-pin ribbon cable supplied; this ribbon cable for a different length |
| Touch Display 2 10.1-inch | 22-pin Mini to Mini ribbon cable supplied, not this one |
Our advice: 200 mm for compact mounting, 300 mm to move the board into a case, 500 mm to place the display further from the board.
Compatibility and pitfalls to avoid
- Raspberry Pi 5 and Compute Module IO boards : 22-pin mini connector.
- Raspberry Pi 4 and earlier : 15-pin connector, this ribbon cable is not suitable.
- Orientation : the small end (22 pins) goes on the Raspberry Pi 5, with the metal contacts facing the Ethernet and USB ports.
- Cameras : Raspberry Pi offers a separate Standard-Mini camera ribbon cable; use the display ribbon cable for a display.
- Handling : switch off and unplug the board, and do not fold the ribbon cable at a sharp angle.
Recommended accessories
- Official display stand for the 7-inch display: to place the original touch display on a desk.
- Raspberry Pi 5 8GB : two DSI/CSI ports to drive one or two displays.
Uses and projects
- Interactive kiosk : create an interactive kiosk with Raspberry Pi.
- Smart home dashboard with a wall-mounted touch display and the board placed remotely.
Frequently asked questions
Which cable connects a DSI display to a Raspberry Pi 5?
A 22-to-15-pin ribbon cable like this one for displays with a 15-pin connector (official 7″ touch display, Touch Display 2 in 5 and 7 inches).
Does this ribbon cable work on a Raspberry Pi 4?
No, the Raspberry Pi 4 uses a 15-pin connector on both ends.
Can it be used for a camera?
Use the dedicated camera ribbon cable: this one is designed for displays.
Which length should I choose?
200 mm for mounting on the back of the display, 300 or 500 mm to place the board remotely.
Does it work with a Compute Module IO board?
Yes, Compute Module IO boards also use the 22-pin mini connector; declare the display in config.txt, as Compute Modules do not detect it automatically.
See all our displays for Raspberry Pi. At MONRASPBERRY, you receive official, tested products, shipped from our stock based in France within 24/48 h of payment being received, with returns possible within 14 days (subject to return authorization), payment by Visa, Mastercard, PayPal, Apple Pay or Google Pay and free pickup point delivery on orders of €200 or more.
