Waveshare SIM7600G-H 4G HAT (B) for Raspberry Pi Zero: LTE Cat-4, 3G, 2G and GNSS
77,75 € INCL. VAT
- SIMCom SIM7600G-H global band modem : 4G LTE Cat-4 (150 Mb/s DL, 50 Mb/s UL), 3G and 2G
- GNSS GPS, GLONASS, BeiDou, Galileo, QZSS
- Pi Zero format 65 x 32 mm : pogo pins under the Zero or micro-USB cable for other Pi boards and PCs
- 2-port USB hub, calls and SMS, 3.5 mm audio jack
Entreprise, école ou collectivité ? business account Offres éducation
- Description
- Additional information
Description

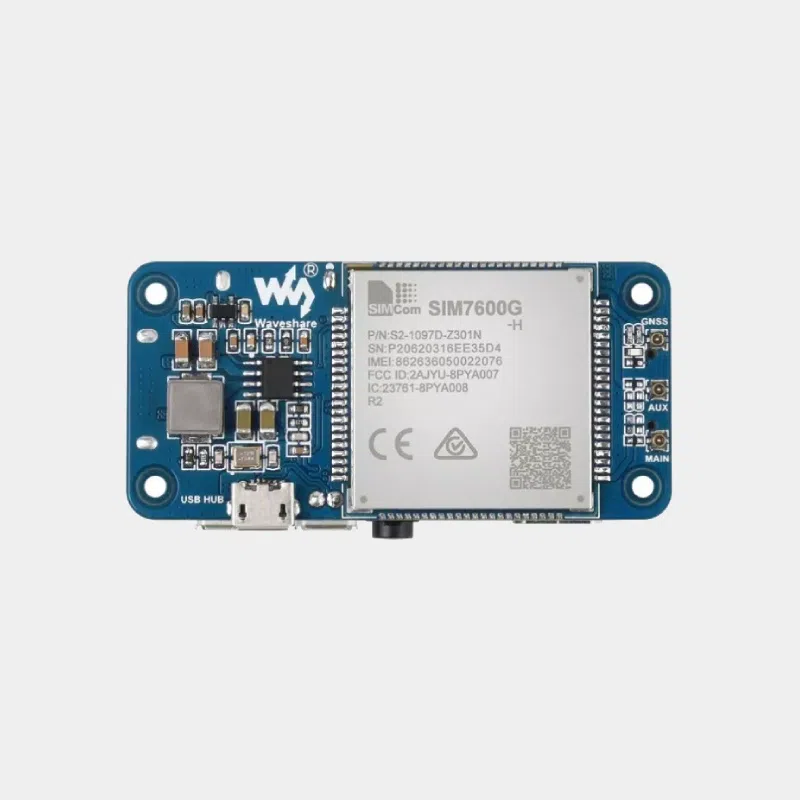

The Waveshare SIM7600G-H 4G HAT (B) adds a 4G cellular connection and a GNSS receiver to a Raspberry Pi Zero. It is based on the SIMCom module SIM7600G-H, the global band version of the SIM7600: LTE Cat-4 up to 150 Mb/s download and 50 Mb/s upload (theoretical rates), with automatic fallback to 3G and 2G (GSM/GPRS/EDGE).
The board has the Raspberry Pi Zero form factor (65 x 32 mm). Under a Pi Zero or Zero W, it connects through pogo pins that carry USB and power: no cable needed. With another Raspberry Pi, a Jetson Nano board or a PC, it connects with a micro-USB cable (included). The link is USB only: the GPIO header is not used.
A USB hub provides two USB-A ports, handy on a Pi Zero that has only one USB port. The 3.5 mm jack and the audio decoder let you make and receive calls, and the modem handles SMS.
Technical specifications
| Features | Value |
|---|---|
| Module | SIMCom SIM7600G-H, LTE Cat-4, global bands |
| 4G data rates | 150 Mb/s download, 50 Mb/s upload (theoretical) |
| LTE-FDD | B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66 |
| LTE-TDD | B34, B38, B39, B40, B41 |
| 3G (UMTS, HSDPA, HSPA+) | B1, B2, B4, B5, B6, B8, B19 |
| 2G (GSM, GPRS, EDGE) | 850, 900, 1800, 1900 MHz |
| GNSS | GPS, BeiDou, GLONASS, Galileo, QZSS, plus cell tower positioning (LBS) |
| GNSS performance | accuracy 2.5 m CEP50 in open sky, cold start < 35 s, hot start < 1 s |
| Host connection | pogo pins (Pi Zero, Zero W) or micro-USB (other Raspberry Pi, Jetson Nano, PC) |
| Ports | 2 USB-A ports (USB hub), 1 USB solder pad, 3.5 mm headphone and mic jack |
| Antennas | 3 u.FL connectors: MAIN, AUX (diversity), GNSS |
| SIM card | SIM slot, 1.8 V and 3 V cards |
| Features | internet connection (NDIS, RNDIS, ECM, PPP), calls, SMS, DTMF, TCP, UDP, HTTP, FTP |
| Controls | AT commands (3GPP TS 27.007, 27.005, V.25TER) |
| Power supply | 5 V over USB, up to 2 A through the pogo pins |
| Consumption | 50 to 300 mA once connected to the network, about 150 mA on average |
| LEDs | 2 LEDs: power (PWR) and network status (NET) |
| Dimensions | 65 x 32 mm |
| Operating temperature | -30 °C to 80 °C |
| Documented systems | Raspberry Pi OS, Windows 10, Jetson Nano, Android |
Box contents
- 1 SIM7600G-H 4G HAT (B) board
- 1 LTE antenna
- 1 GPS antenna
- 1 USB-A to micro-B cable
- 1 pack of screws
SIM card and data plan not included.
Use cases
- Internet access without Wi-Fi for a Raspberry Pi Zero installed at a remote site, in a vehicle or on a worksite.
- Position tracking : reading GNSS NMEA sentences for a vehicle or equipment tracker.
- SMS or call alerts triggered by a sensor or a script.
- Backup link when the fixed connection of an installation goes down.
Waveshare provides a step-by-step setup guide on its wiki (internet connection, GPS, calls, SMS) and sample programs for Raspberry Pi.
Additional information
| Weight | 0,162 kg |
|---|---|
| HAT type | Network |
| Manufacturer reference | SIM7600G-H 4G HAT (B), Waveshare SKU 19485 |
| Module | SIMCom SIM7600G-H |
| Networks | 4G LTE Cat-4, 3G, 2G |
| GNSS | GPS, BeiDou, GLONASS, Galileo, QZSS |
| Connection | Pogo pins (Pi Zero), micro-USB |
| Compatibility | Raspberry Pi Zero, Zero W (pogo); other Raspberry Pi and PC (micro-USB) |
| Dimensions | 65 x 32 mm |
